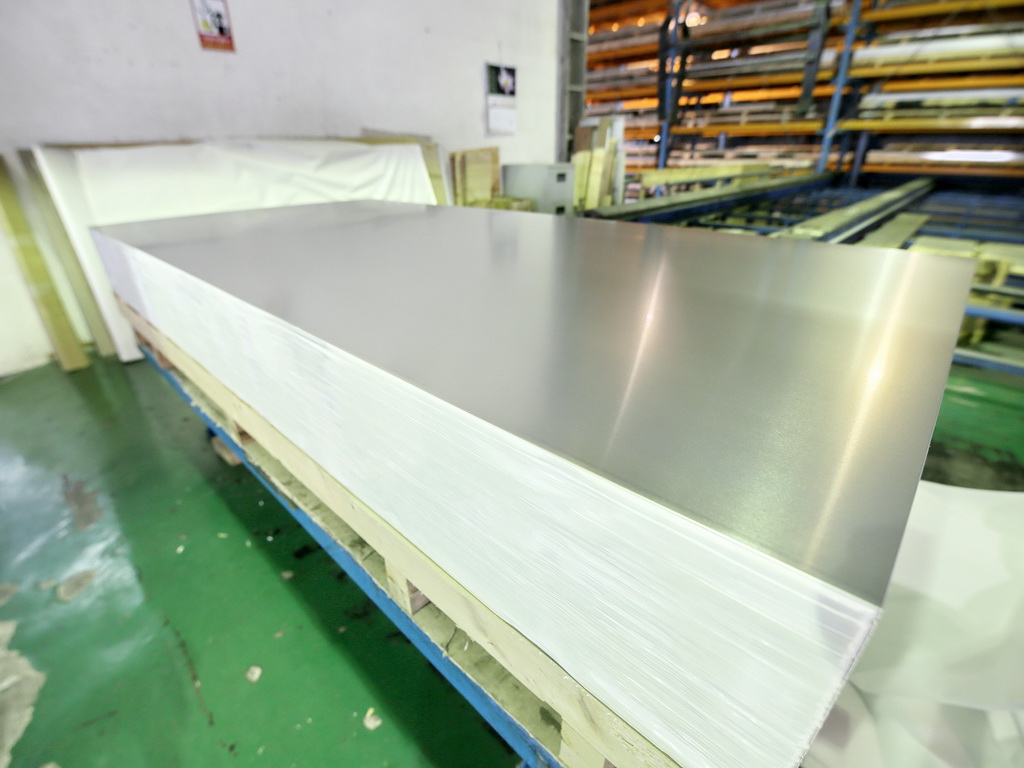

Aluminum Alloy Coil & Sheet
| Alloy | Chemical Composition W t % | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Si | Fe | Cu | Mu | Mg | Cr | Zn | Zr.Zr+Ti,Ga.V | Ti | Others | AL | ||
| Each | Total | |||||||||||
| 1085 | 0.10max | 0.12max | 0.03max | 0.02max | 0.02max | - | 0.03max | - | 0.02max | 0.01max | - | 99.85 and over |
| 1080 | 0.15max | 0.15max | 0.03max | 0.02max | 0.02max | - | 0.03max | 0.03max | 0.02max | - | 99.80 and over | |
| 1070 | 0.20max | 0.25max | 0.04max | 0.03max | 0.03max | - | 0.04max | 0.03max | 0.03max | - | 99.70 and over | |
| 1050 | 0.25max | 0.40max | 0.05max | 0.05max | 0.05max | - | 0.05max | - | 0.03max | 0.03max | - | 99.50 and over |
| 1100 | Si+Fe 1.0max | 0.05-0.20 | 0.05max | - | - | 0.10max | - | - | 0.05max | 0.15max | 99.00 and over | |
| 1200 | Si+Fe 1.0max | 0.05max | 0.05max | - | - | 0.10max | - | 0.05max | 0.05max | 0.15max | 99.00 and over | |
| 5052 | 0.25max | 0.40max | 0.10max | 0.10max | 2.2-2.8 | 0.15-0.35 | 0.10max | - | - | 0.05max | 0.15max | remainder |
| Alloy | Product Form | Characteristics | Applications |
|---|---|---|---|
| 1085 | sheet/coil | Low strength, excellent formability, weldability and corrosion resistance | Reflecting plates, lighting, ornaments, chemical industry tanks, and electrical conductors. |
| 1080 | plate, sheet/ coil, circle | ||
| 1070 | plate, sheet/ coil, circle | ||
| 1050 | plate, sheet/ coil, circle | ||
| 1100 | plate, sheet/ coil, circle | Moderately low strength, excellent workability, weldability and corrosion resistance. | General use, especially as architectural material, and casings. |
| 1200 | plate, sheet/ coil, circle | ||
| 5052 | plate, sheet/ coil, circle | Standard alloy of mid-strength, good corrosion resistance, workability and weldability. | Ship, vehicle and architectural use and can endstock. |
| Regular Inventory List | ||||
|---|---|---|---|---|
| Alloy Thickness |
1050 | 5052 | ||
| Coil | Sheet | Coil | Sheet | |
| 0.20mm | ◎ | |||
| 0.30mm | ◎ | ◎ | ◎ | |
| 0.40mm | ◎ | ◎ | ◎ | |
| 0.50mm | ◎ | ◎ | ◎ | ◎ |
| 0.60mm | ◎ | ◎ | ◎ | ◎ |
| 0.80mm | ◎ | ◎ | ◎ | ◎ |
| 1.0mm | ◎ | ◎ | ◎ | ◎ |
| 1.2mm | ◎ | ◎ | ◎ | ◎ |
| 1.5mm | ◎ | ◎ | ◎ | ◎ |
| 1.6mm | ◎ | ◎ | ◎ | ◎ |
| 2.0mm | ◎ | ◎ | ◎ | ◎ |
| 2.3mm | ◎ | ◎ | ||
| 2.5mm | ◎ | ◎ | ||
| 3.0mm | ◎ | ◎ | ||
| 3.2mm | ◎ | ◎ | ||
| 4.0mm | ◎ | |||
| 5.0mm | ◎ | |||
| 6.0mm | ◎ | |||
- Regular inventory are marked with『◎』
- For further inquiries, please contact us by:
- Foreign contact window: Bell Wang +886-2-2542-4323 extn#220
- Domestic contact window: Judy Chang +886-2-2542-4323 extn#231
Remarks:
- We are the wholesale distributor of CSAC for aluminium sheet, plate, and coil.
- We specialize in the trade of aluminium and we are also the agent for the distribution of the world-known foreign mills, such as: CONSTELLIUM(Sierre/Issoire/Singen) , Novelis(Nachterstedt/Korea) , Alcoa(Davenport/Cressona/Fusina,Italy/Samara/B.K.) , Aleris(Duffel,Belgium) , AMAG(Ranshofen,Austria ) , Kumz(Russia) , Furukawa-sky , Kobelco , SumitomoLightMetal , NipponLightMetal , ShowaDenko , CSAC(Taiwan)
